ADAMS Hydraulics has established a collaboration of Ship’s Steering Gears & Winches – Test Benches factory. They develop hydraulic pumps and valves for ship engine, winch and other peripheral devices for steering gear. Localization and construction of the OEM export basis (in cooperation with overseas technology)
The main ship components (manifold ass’y for steering gears, control valve for winch and exhaust valve for engine) are homemade and are supplied foreign shipbuilding industry.

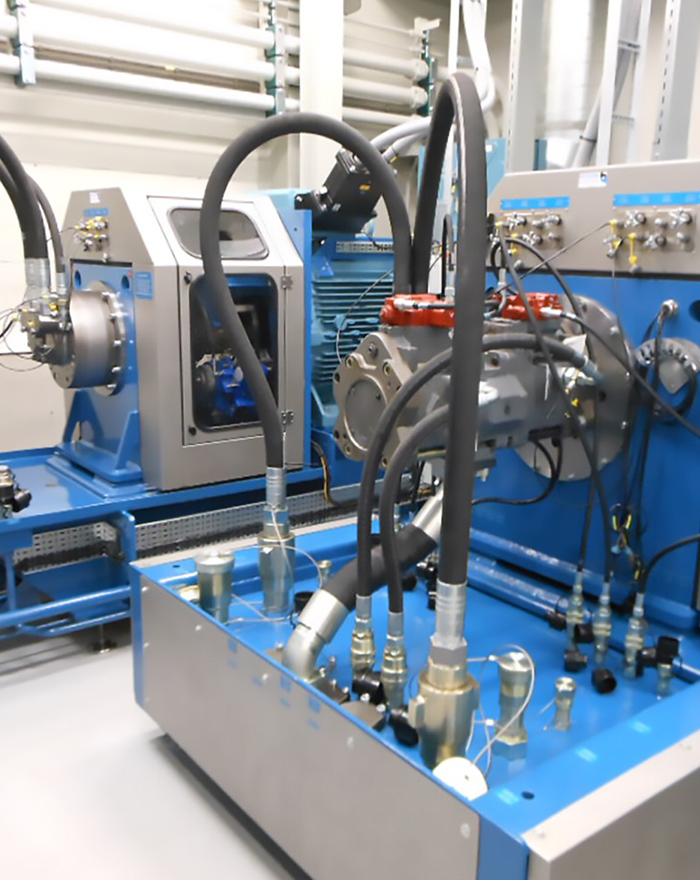

Features of the Test Benches
- Remote monitoring – the operator is removed from the test environment
- Data acquisition and control system
- Dynamometer mode allows testing of a motor as a motor (not a pump)
- Effortless contamination control to ISO 20/16/13 (per Cyclic Stabilization Test SAE ARP4205)
- No de-rating the test bench in 50 Hz countries
- Includes Pump and Motor Test Package:
- Two (2) case drain flow circuits
- High pressure filtration with flow straightener
- Load sensing pump circuit
- Component cooling loop
- Energy recovery – reduces incoming power required for testing of pumps
- Continuous 6,000 psi (414 bar) auxiliary pump
Specifications include:
- Available in 200, 300, 400 or 500 hp (149, 224, 298 and 373 kW)
- High Flow Supply Circuit feature available on the HTC-500 (500 hp)
- Reservoir capacity of 750 gal. (2,839 l) on HTC-500 with High Flow Supply
- An additional 100 gal. (379 l) separate machine reservoir available on all models
- High capacity 20,000 lb (9,072 kg) work support with integral sump
- Adjustable driveline height 16 – 77 in. (41 – 196 cm)
- Four (4) PWM outputs and two (2) solenoid outputs for component control
- Two (2) variable flow supply circuits
